当前位置:首页 > 产品中心 > AHD 模拟摄像机 (CAMERA)

分类:AHD 模拟摄像机 (CAMERA)

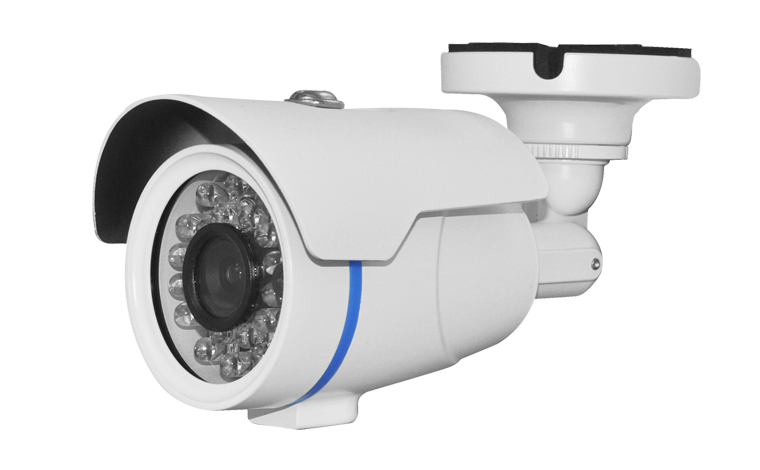

简介:同轴130万高清户外防水摄像机;AHD摄像机



Model

A509R-130W

Camera

Image Sensor

1/3" Sony IMX238      (1.3MP - 960P))

Effective Pixels

1280*960

Electronic Shutter

1/50s~1/100,000s

Video Frame Rate

PAL: 25fps@720P;  NTSC: 30fps@720P

Synchronization

Internal

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Video Output

1 CH BNC AHD high definition video output

Camera Features

LEDs

24 pcs

IR Distance

20-25m IR view

Day/ Night

Auto(ICR) / Color / B/W

Noise Reduction

2D

Lens

Focal Length

3.6/6 mm fixed lens optional

Mount Type

M12

General

Power Supply

DC12V±20%

Power Consumption

Max 2.5W

Working Environment

-30°C~+60°C / Less than 95%RH (no condensation)

Transmission Distance

Over 500m via 75-3 coaxial cable

Ingress Protection

IP66

Material

Metal





●1/3" 1Megapixel (1280*960) CMOS
●25/30fps@960P
●High speed, long distance real-time transmission
●Day/Night (ICR), AWB, AGC, BLC
●3.6/6mm fixed lens
●Max. IR LEDs length 20-25m, Smart IR
●IP66, DC12V
