Classification:AHD Camera

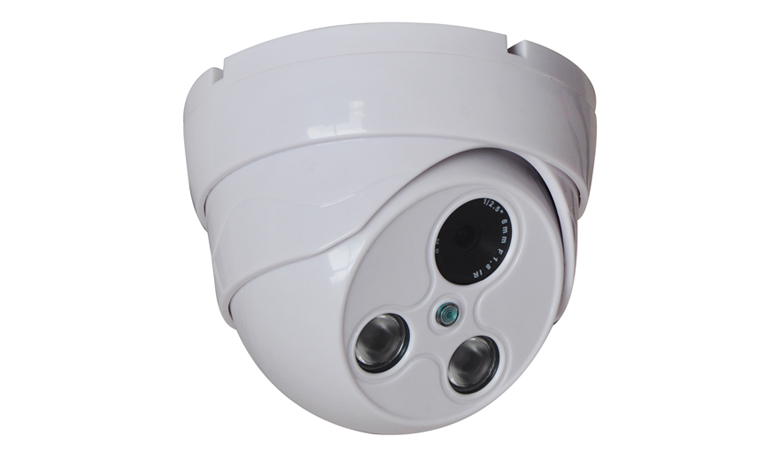

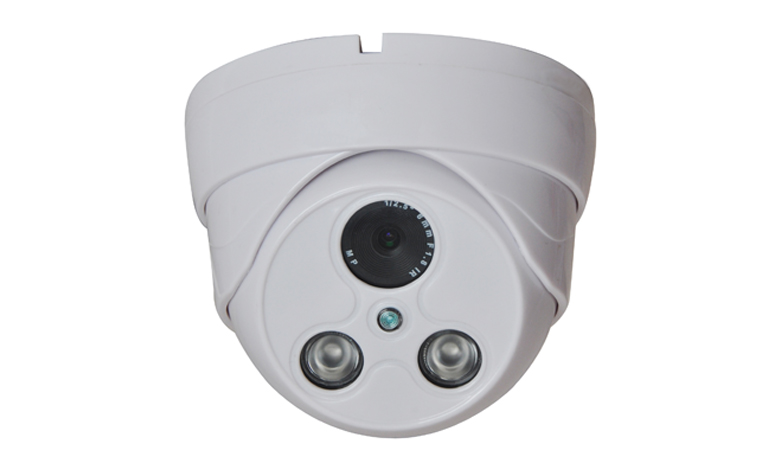

Brief introduction:2.0MP indoor IR Dome AHD Camera
●1/2.8" 2.0Megapixel (1920*1080) CMOS
●25/30fps@1080P
●High speed, long distance real-time transmission
●Day/Night (ICR), AWB, AGC, BLC
●4/6mm HD 2Megapixel lens
●Max. IR LEDs length 40-50m, Smart IR
●IP64, DC12V
Model | A3912-200W |
Camera | |
Image Sensor | 1/2.8’’ 2.0 megapixel (1920*1080) CMOS |
Effective Pixels | 1920*1080 |
Electronic Shutter | 1/50s~1/100,000s |
Video Frame Rate | PAL: 25fps@1080P; NTSC: 30fps@1080P |
Synchronization | Internal |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
Video Output | 1 CH BNC AHD high definition video output |
Camera Features | |
LEDs | 2pcs Array Leds |
IR Distance | 40-50m IR view |
Day/ Night | Auto(ICR) / Color / B/W |
Noise Reduction | 2D |
Lens | |
Focal Length | 4/6mm HD 2Megapixel lens optional |
Mount Type | M12 |
General | |
Power Supply | DC12V±20% |
Power Consumption | Max 2.5W |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
Transmission Distance | Over 500m via 75-3 coaxial cable |
Ingress Protection | IP64 |
Material | Plastic |
