Classification:IP Camera

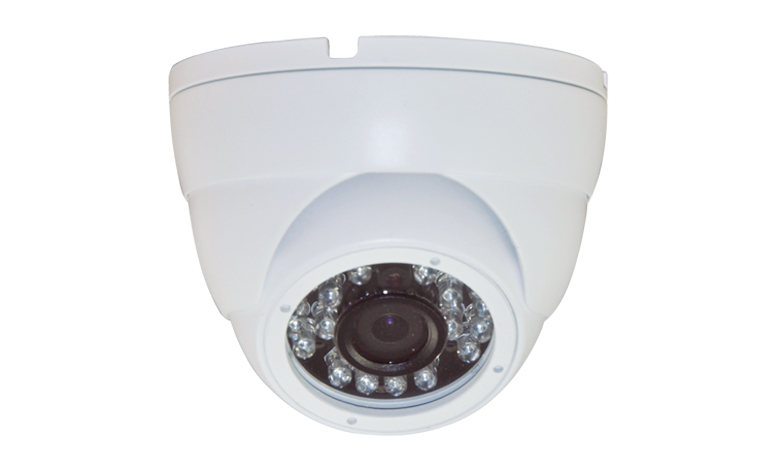

Brief introduction:1.3MP Indoor IR Dome IP Camera Support P2P ONVIF; Vandalproof
●1/3” 1.3 Megapixel progressive scan CMOS
●25/30fps@960P (1280×960)
●H.264 compression
●Day/Night (ICR), DNR, AWB, AGC, BLC
●3.6mm fixed lens (6mm optional)
●Multiple network monitoring: Web viewer, CMS, mobile phone
●Max. IR LEDs length 20-25m, Smart IR
●IP64, DC12V
●ONVIF 2.3 version
Model | N361-130W | |
Camera | ||
Image Sensor | 1/3’’ 1.3 megapixel (1280*960) CMOS | |
Effective Pixels | 1280*960 | |
Scanning System | Progressive | |
Electronic Shutter | Auto 1/3(4)~1/100,000s | |
S/N Ratio | More than 48dB | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Camera Features | ||
LEDs | 24*Φ5 | |
IR Distance | 20-25m IR view | |
Day/ Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / AGC | |
White Balance | Auto | |
Gain Control | Auto | |
Noise Reduction | 2D | |
Lens | ||
Focal Length | 3.6/6/8 mm fixed lens optional | |
Mount Type | M12 | |
Video | ||
Compression | H.264 | |
Resolution | 960P(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240) | |
Frame Rate | Main Stream | 960P(1 ~ 25/30fps) |
Sub Stream | D1/CIF(1~25/30fps) | |
Network | ||
Ethernet | RJ-45 (10/100Mbps) | |
Protocol | TCP/ HTTP/ RTSP/ PPPoE/ DDNS/ NTP/ UPnP | |
ONVIF | 2.3 version | |
Smart Phone | iPhone, iPad, Android Phone | |
General | ||
Power Supply | DC12V±20% | |
Power Consumption | Max 2.5W | |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
Transmission Distance | Over 500m via 75-3 coaxial cable | |
Ingress Protection | IP64 | |
Material | Metal Vandaproof |
